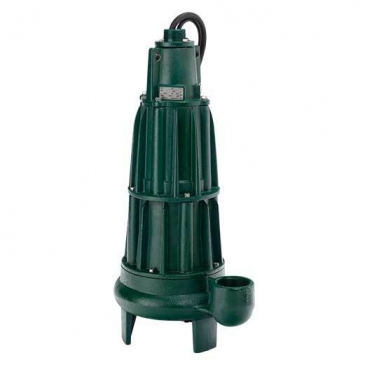

X61 HD Series


X61 HD Series

Application- Commercial Buildings


Heavy-duty pumps for Class I, Division 1, Group C & D locations and Class Zone 1, Groups IIA & IIB Construction

Covered by US Patent Number 6,364,620.

APPLICATIONS

  • Pumping stations
  • Storm water removal
  • Wastewater transfer or removal
  • Industrial wastewater
  • Food industry byproduct (horizontal discharge units)
  • Animal processing removal (horizontal discharge units)

PUMP:

  • Solids: 2-1/2” (63 mm) spherical capability
  • Discharge: 3” NPT vertical or 3″ or 4″ flanged horizontal
  • Seals – dual mechanical carbon/stationary ceramic/rotary, Buna-N elastomers
  • Construction – cast iron ASTM A-48, Class 30, 30,000# tensile strength, protected with a corrosion-resistant, baked-on epoxy powder coating
  • Balanced concentric pump housing and impeller
  • Attaching hardware – 304 stainless steel
  • O ring seals – Buna-N
  • Ductile iron impeller – two-blade, semi-open with top pump-out vanes
  • Optional:
    • Trimmed impeller
    • Vortex impeller
    • Bronze impeller
    • Silicon carbide seal(s)
    • 50’ (15 m) power and sensor cables
    • 3450 RPM high head unit (3″ discharge units only)
    • Non-sparking rail systems
    • 3″ (76 mm) solids capacity (4″ discharge units only)

MOTOR:

  • cCSAus rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
  • Tested to FM standards 3600 and 3615 by CSA
  • Stator – Class F insulation and lead wires, Nema B design
  • Oil-filled motor housing
  • Thermal sensor
  • Finned cast iron housing for faster heat dissipation
  • Ball bearings – dual high carbon chromium steel
  • Power and sensor cable length – 25’ (8 m)

Note: Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.

Voltage Ability 200 / 230 / 460 / 575
Phase 1 & 3
Hz 60
Discharge Size 3″ NPT Vertical
3″ & 4″ Horizontal Flange
Solids Handling 2.5″ Standard, 3″ Optional with 4″ Discharge
HP 1.0 – 7.5
RPM 1750 & 3450
Seals Carbon Ceramic
O Rings Buna-N
Impeller Ductile Semi-Open, Ductile Iron Vortex, & Bronze Semi-Open Optional

Caution

Not for use in acidic, methanol or ethyl acetate atmospheres

Selection Guide

For information on additional Zoeller® Engineered Products refer to catalog on Rail Systems, ZM1347; Control panels ZM1342; Float Switch Brackets and Pump Lifting Cables ZM1328; Check Valves and Piping Accessories ZM1348.
