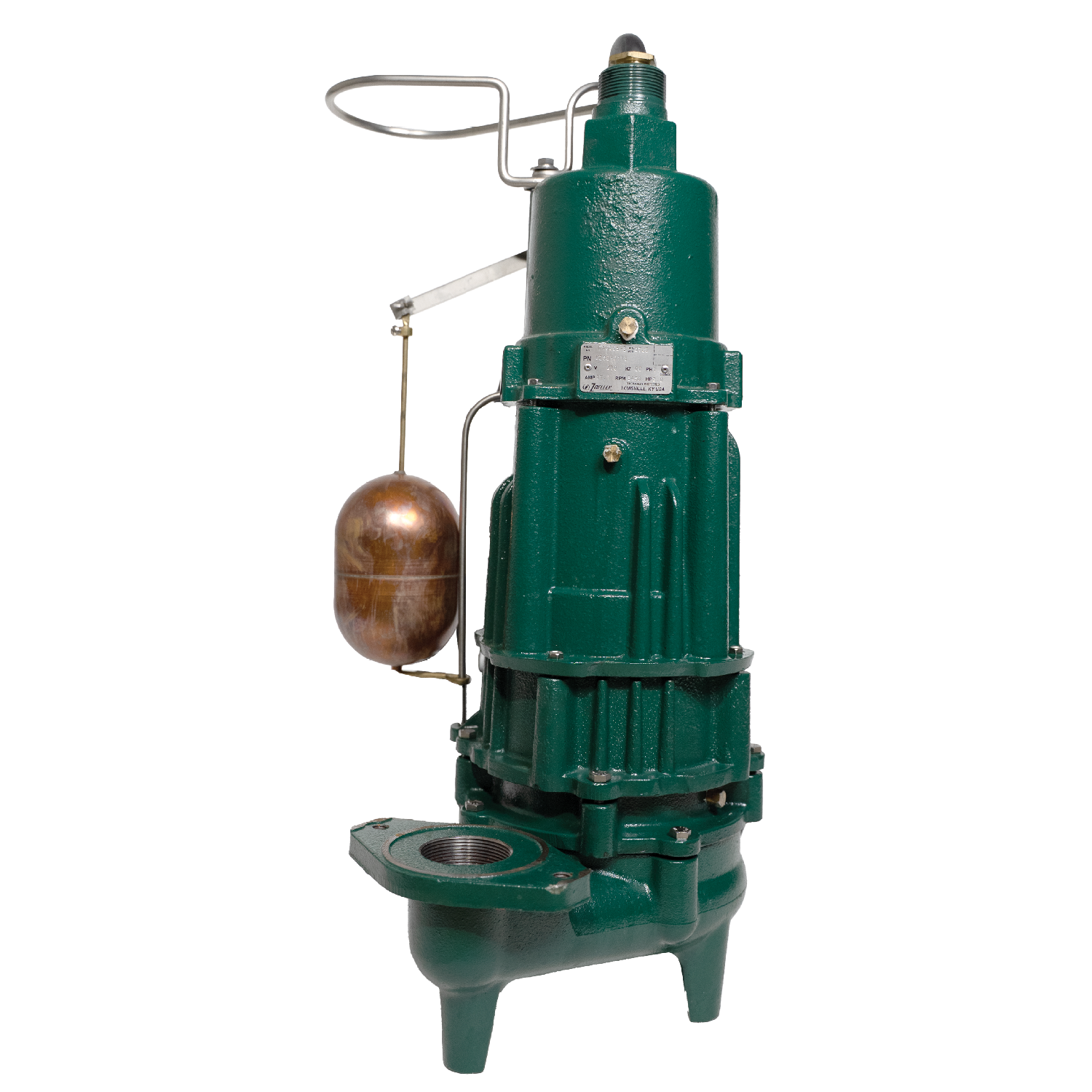

X6290 Series


X6290 Series

Application- Commercial Buildings

Commercial duty sewage pumps for Class I, Division 1, Group C & D locations and Class Zone 1, Groups IIA & IIB Construction

APPLICATIONS

  • Pumping stations
  • Parking lot dewatering
  • Parking garage sumps
  • Commercial sewage

PUMP:

  • Solids – 2” (50 mm) spherical capability
  • Discharge – 2” or 3″  NPT vertical
  • Seals – dual mechanical carbon/stationary ceramic/rotary upper, carbon/stationary silicon carbide/rotary lower.
  • Construction – cast iron ASTM A-48, Class 30, 30,000# tensile strength, protected with a corrosion resistant baked on epoxy powder coating
  • Seal leak probes
  • Balanced concentric pump housing and impeller
  • Attaching hardware – 304 stainless steel
  • Square ring seals – Viton
  • Impeller – cast iron vortex
  • Optional:
    • Additional cord length
    • Silicon carbide seals
    • Bronze Impeller (X6290 only)
    • Non-sparking rail systems

MOTOR:

  • cCSAus rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
  • Tested to FM standards 3600 and 3615 by CSA
  • Stator – Class B or F insulation and lead wires
  • 416 stainless steel motor shaft
  • Oil-filled motor housing
  • Finned cast iron housing for faster heat dissipation
  • Integral overload protection (1 Ph)
  • Thermal sensors with lead wires (3 Ph)
  • Ball bearings – upper and lower high carbon chromium steel
  • Power cable length – 25’ (8 m)

Note: Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.

Voltage Ability 115 / 200 / 230 / 460 / 575
Phase 1 & 3
Hz 60
Discharge Size 2″ Standard, 3″ Optional
Solids Handling 2″
HP 1/2 & 1
RPM 1750
Seals Upper – Carbon Ceramic
Lower – Silicon Carbide/Carbon
O Rings Viton
Impeller Cast Iron Vortex

Caution

Not for use in acidic, methanol or ethyl acetate atmospheres.

Selection Guide

For information on additional Zoeller® Engineered Products refer to catalog on Rail Systems, ZM1347; Control panels  ZM3376; Float Switch Brackets and Pump Lifting Cables ZM1328; Check Valves and Piping Accessories ZM1348.
