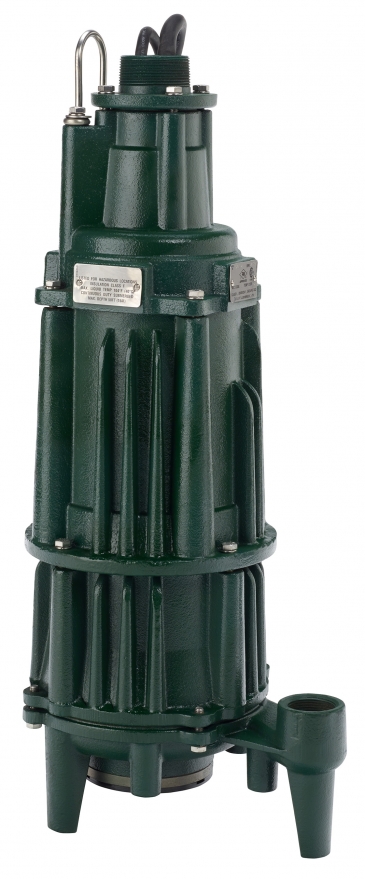

X70 Grinder Series


X70 Grinder Series

Application- Commercial Buildings


Explosion-proof grinder pumps  cCSAus rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction Tested to FM standards 3600 and 3615 by CSA

Covered by US Patent Number 6,364,620.

APPLICATIONS

  • Pump stations
  • Housing developments
  • Pressure sewers
  • Class I, Division 1, Group C & D locations

PUMP:

  • 440 stainless steel cutter and plate hardened to Rockwell C55-60
  • Discharge: 1-1/4″ NPT
  • Seals – dual mechanical carbon/rotary, ceramic/stationary upper, carbon/silicon carbide lower
  • Moisture detection system
  • Construction – cast iron ASTMA A-48, Class 30, 30,000# tensile strength, protected with a corrosion-resistant, baked-on epoxy powder coating
  • Attaching hardware – 304 stainless steel
  • O ring seals – Viton
  • Impeller – Ductile iron (X7011/X7013), Bronze (X7012) vortex design
  • Optional:
    • Trimmed impeller
    • Silicon carbide seal(s)
    • 25’ (8 m) power and sensor cables
    • 35′ (11 m) power and sensor cables
    • 50′ (15 m) power and sensor cables
    • X7011 Reversing model
    • X7012 High Head model
    • X7013 High flow model
    • Non-sparking rail systems
    • Bronze impeller (7011 only)

MOTOR:

  • cCSAus rated Class I, Division 1, Groups C & D and Class Zone 1, Groups IIA & IIB Construction
  • Tested to FM standards 3600 and 3615 by CSA
  • Stator – Class F insulation and lead wires, Nema B design
  • Thermal sensor with leads
  • Housing – cast iron, oil-filled
  • Ball bearings – upper and lower high carbon chromium steel
  • Power and sensor cable length – 20’ (6 m)

Note: Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.

Voltage Ability 200 / 230 / 460 / 575
Phase 1 & 3
Hz 60
Discharge Size 1.25″
Solids Handling Grinder, Slurry
HP 2
RPM 3450
Seals Upper – Carbon Ceramic
Lower – Silicon Carbide/Carbon
O Rings Viton
Impeller Ductile Iron (X7011/X7013), Bronze (X7012) Vortex
