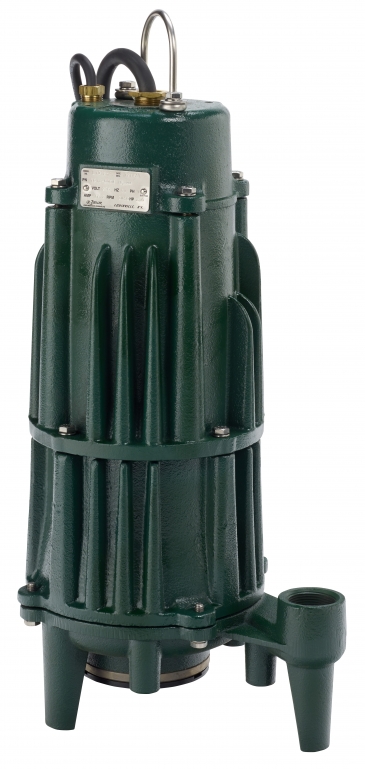

7013 Grinder Pumps


7013 Grinder Pumps

Application- Commercial Buildings

Single direction grinder pumps.  7013 (High Flow).

APPLICATIONS

  • Pumping stations
  • Housing developments
  • Pressure sewers

SPECIFICATIONS

  • Discharge: 1-1/4″ NPT Vertical or Horizontal
  • Durable, heavy-duty finned cast iron construction
  • 1 Phase – integral thermal overload
  • 3  Phase – thermal sensor and leads
  • Corrosion-resistant, powder coated epoxy finish
  • Oil-filled, hermetically sealed motor with Class F insulation
  • Hardened stainless steel cutter and disc
  • Cutters protected from abrasive solids
  • Stainless steel screws, bolts, and lifting bail
  • Easily adapts to many existing competitors’ rail systems
  • Mechanical shaft seals with leak detection – carbon/silicon carbide lower seal, carbon/ceramic upper seal
  • Viton O-rings
  • Automatic thermal overload protection (1 Ph)
  • Thermal sensor protection (standard on 3 Ph)
  • Legs provide for free-standing installation
  • Preassembled systems available

Refer to ZM1288 for packaged basin assemblies and accessories.

Note: Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.

Voltage Ability 200 / 230 / 460 / 575
Phase 1 & 3
Hz 60
Discharge Size 1.25″
Solids Handling Grinder, Slurry
HP 2
RPM 3450
Seals Upper – Carbon Ceramic
Lower – Silicon Carbide/Carbon
O Rings Viton
Impeller Ductile Iron
