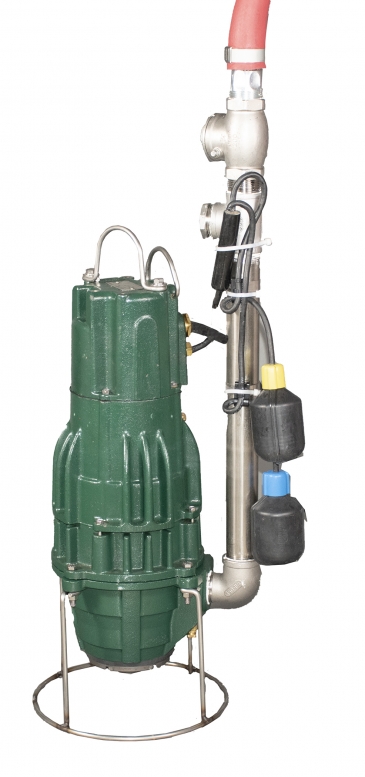

6932 LPS Replacement


6932 LPS Replacement

Application- Low Pressure Sewers (LPS)


Drop in replacement grinder for Low Pressure Sewer systems.

  • Readily adapts to existing progressing cavity grinder pump systems
  • Meets UL, CSA, and NSF Pump Standards
  • 1 HP, 230 volts, 60 Hz
  • 2 HP, 200 or 230 volts, 60 Hz

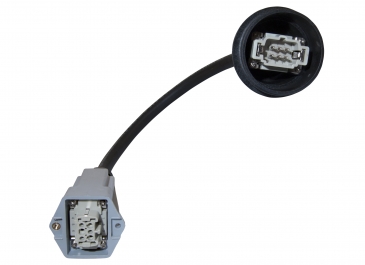

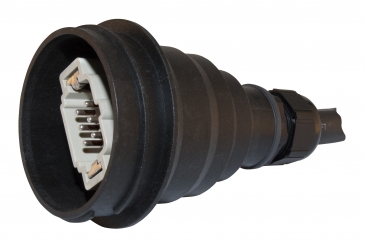

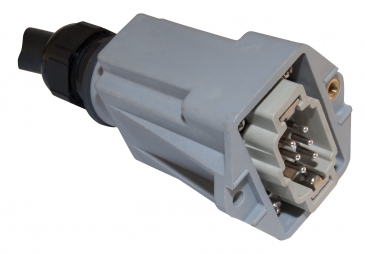

  • Electrical Quick-Disconnect (EQD) Plug
  • Stainless steel hydraulic rotor with protective deflector plate
  • Integral pressure relief valve
  • Stainless steel fitted cover, stand, discharge, piping valves, and fittings

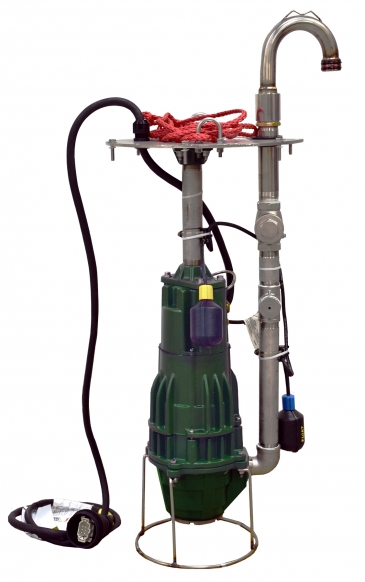

  • RWD7020 & 7021 systems with internally mounted level control
  • Finned cast iron construction
  • Corrosion-resistant, powder coated epoxy finish
  • Discharge size – 1-1/4” NPT
  • Oil-filled motor with integral thermal overload protection
  • Viton seals and SC/C mechanical shaft seal
  • Hardened 440 C stainless steel cutter and disc, Rockwell C55-60
  • Stainless steel check valve
  • Red lifting rope
  • Anti-siphon device (optional – p/n 10-4828)
Voltage Ability 230 or 200 (2 HP Only)
Phase 1
Hz 60
Discharge Size 1.25”
Solids Handling Grinder, Slurry
HP 1 & 2
RPM 1750
Seals Silicon Carbide/Carbon
O Rings Viton
Impeller Hydraulic Rotor
