Certifications

• cCSAus certified to standard UL508
• FCC Class-B certification to ISED Canada ICES-003, Issue 6
• For outdoor or indoor use, -40C to +60C

Components

• Red alarm beacon with 360-degree visibility
• Audible alarm buzzer rated 95 db at 2’ (0.6 m)
• SILENCE/RESET/TEST toggle switch with weatherproof rubber boot
• HAND/OFF/AUTO control are included for each pump
• Auxiliary output dry contacts (NO-COM-NC) terminals, Form C, 5A resistive load
• Pump Run dry contact, (NO-COM)

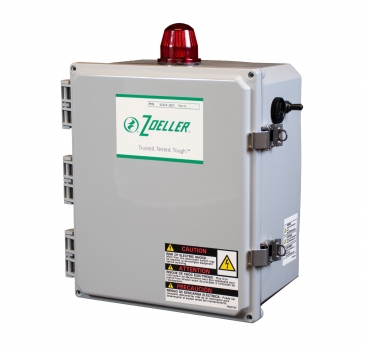

• NEMA 4X 12”x10”x6” enclosure with lockable latch

Power

• Control circuit powered by 120VAC, 60 Hz
• Alarm circuit can be powered by separate power feed, if needed
• Alarm and control circuits individually fused, 3A, fast-acting, 120VAC
• Circuit breaker protection
• Max alarm and control circuit power consumption: Simplex models 32W, Duplex models 40W
• Max standby power consumption: 5W
• Terminals for 120VAC control power, 120VAC alarm power, up to 4 float switches (duplex), pump input power

Field Wiring & Maintenance

• 4 enclosure mounting brackets are included
• All components are serviceable (See FM3364 for available replacement parts)2 sets of wiring schematics and installation instructions are included along with an inside door mounted QR code for easy access to additional support material online
• All wires and terminal locations thoroughly labeled for easy identification

STANDARD FEATURES

(For a more thorough description of features, see ZM3376 Panel Selection Guide or FM3295 Cross Reference and Features Comparison List)

• 5 year limited warranty
