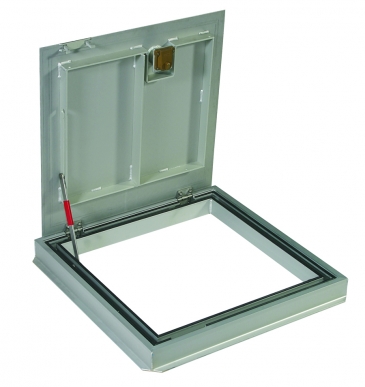

Aluminum Access Hatch

• 300 PSF rated
• Aluminum hatch to be cast into concrete
• Single or multiple doors available
• Drainable frame with 1-1/2″ (3.8 cm) drain coupling
• 1/4″ (6 mm) thick aluminum diamond plate rated at 300 psf
• 316 stainless steel hinges and tamper-proof nuts and bolts
• 316 stainless steel hold open arm
• Padlock staple

Aluminum Basin Cover

• 300 PSF rated
• Aluminum cover to be bolted down to basin
• Single door
• 1/4″ (6 mm) thick aluminum diamond plate rated at 300 psf
•  stainless steel hinges and tamper-proof nuts and bolts
• stainless steel hold open arm
• Padlock staple

2-1/2″ to 80″ 90° Flanged Elbows

• Cast iron construction
• Conform to ANSI B16.10 fully flat/MSS SP-6

Stainless steel lifting cables

• Designed for all series of pumps
• Permanent and removable types
• Lengths up to 30 ft. (contact factory for special designs)

Stainless steel lifting bails

• Mounted onto pump
• Rigid or cable type

4″ x 6″ Flanged, Dry-Pit Mounting with Clean-Out (6039-0035)

• Class 30, epoxy coated cast iron construction
• 6″ inlet / 4″ outlet
• Conform to ANSI B16.10 fully flat/MSS SP-6
• For use on dry-pit pumps with 4″ discharge
• 3″ clean-out plug

1-1/4″ Anti-Siphon Device 10-0787: Field Installedv
